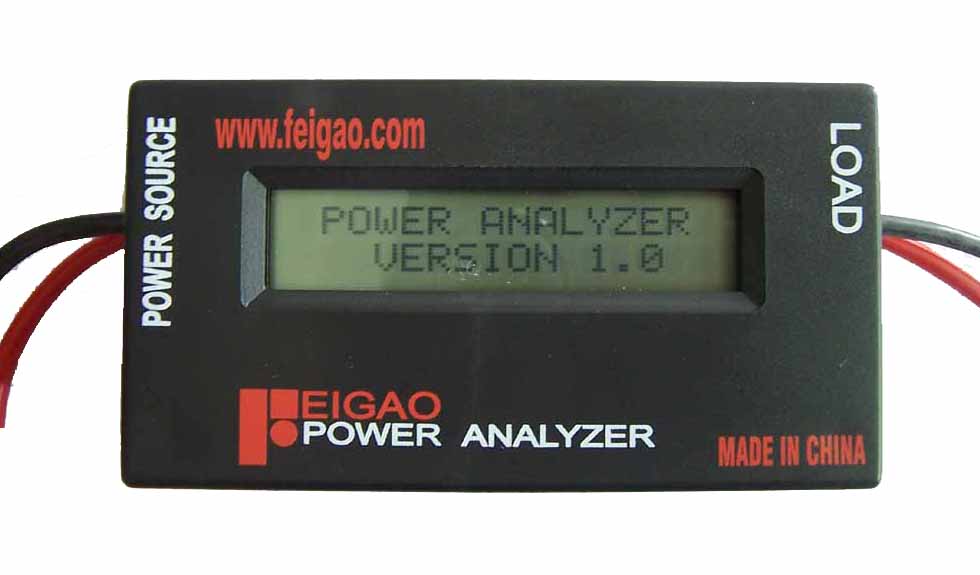

A power analyser designed for electric flight - on it's own it can be used for instant
watts/amps/volts read out of your power setup.
Also included is a lead to connect it to your PC & a cdrom with software to install on your PC.
This will give you some extra features including real time graphs of what you are testing!
Product Description
1. Following shows the 5 parameters for product's basic characteristic.
Voltage measuring 0-100Volts
Power measuring 0-10000Watts
Amp-hours 0-9.999AH
Watt-hours 0-999.9WH
2. Automatically adjustment, adjustment procedure unnecessary.
3. Automatically exchanged between high & low current.
4. Automatically exchanged between high & low voltage.
5. PC supported PowerView software, including monitoring & drawing function
--Specifications--
Size: 104mmx56mm24.5mm
Weight: 125g
Both: 4-1/16 x 2-3/16 x 15/16", about 4 oz. Measure your motor's and battery's Volts (to 60V), Amps (to 100A), Watts (up to 6000), Amp-Hours (up to 9.999AH), and Watt-Hours (up to 999.9WH). Plug in Power Analyzer between your battery and motor controller to measure your system's performance. Easy to use with good instructions. Power Analyzer PLUS II can be connected to your computer's USB port with the included interface cable and its software (on CD). All of your tests can be saved and graphed on your computer. Track the changes in battery packs over time or optimize the prop and battery selection for your next plane. (Photo shows Power Analyzer Plus. Cable and CD are only included with this version.) Units come without connectors; order ones that match your systems.
)
)
)
